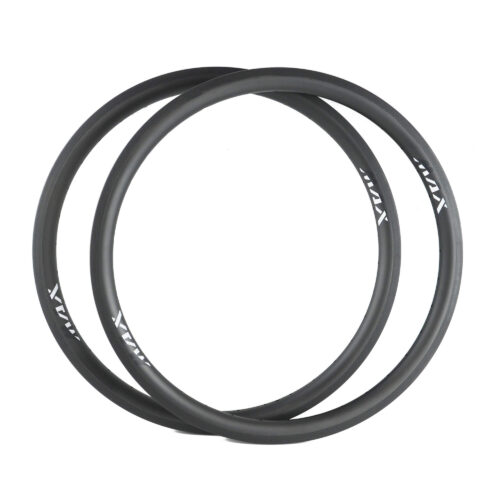

Junior/Mini 20×1-1/8″ MAX BMX Carbon Fiber Race Rims

$199.95

FREE ShippingShip from MAX BMX factory team in Asia

Due to the Peak Season, the delivery time will be 28-35 Working days !

$
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

MAX Carbon BMX rims, Light, Stiff and Strong, Tried and true design, they are run by some of the world’s best racers.

Max rims are constructed from the highest strength standard modulus fiber. 15% Toray T800 and 85% Toray T700. They promote low rotational weight, low aerodynamic drag, and high acceleration with maximum rigidity. Designed for up to 130kg rider weight limit, 130kgf spoke tension and 130psi/8.97bar tire pressures. Available in UD, 3K, 3K Twill, 12K, 12K Twill and Marble weave carbon(What’s the different of carbon weave?).

451mm ETRTO MAX 20*1-1/8″ Junior/Mini bmx rims is drilled for a Presta Valve and 28H spoke hole.

The MAX Junior carbon BMX rims accept 20×1″, 20×1 1/8″ and 20×1 3/8″ tires.

21mm rim wide for 20×1-1/8″ tyre. This is a stiff and strong rim for sure! Thought and developped for those young riders who already send big jumps.

Rim Depth: 25 mm
External Width: 21 mm
Internal Width: 14mm
Spoke Hole: 28H
Weight: 290 ±10g
ERD: 420 mm (ERD is the spoke measurement size)

25mm Low Profile Design for optimum stiffness and damping. Reduces the buffeting effect of cross winds on outdoor tracks. Don’t be afraid of crosswinds at the track anymore!

Rear rim with weaved Basalt braking surface can resist 240 Degrees Celsius, but a Carbon Brake pad is required for the best and safer braking performance.
Rims without a braking surface can be used as a front rim but also a rear rim when using a disc brake.

Spoke holes are drilled using advanced 4D drilling technology. This ensures an optimal spoke path that eliminates any extra stress on the spoke/nipple and makes the wheel greater strength and durability.

MAX BMX are so confident with our carbon fiber rims that they carry 3-year warranty against manufacturer defects. Learn more Warranty policy.
